B06P3G1B1AA1201110连接器

上一条： B06P3G1B1AA1401110连接器

下一条： B06P3G1B1AA1A01110连接器

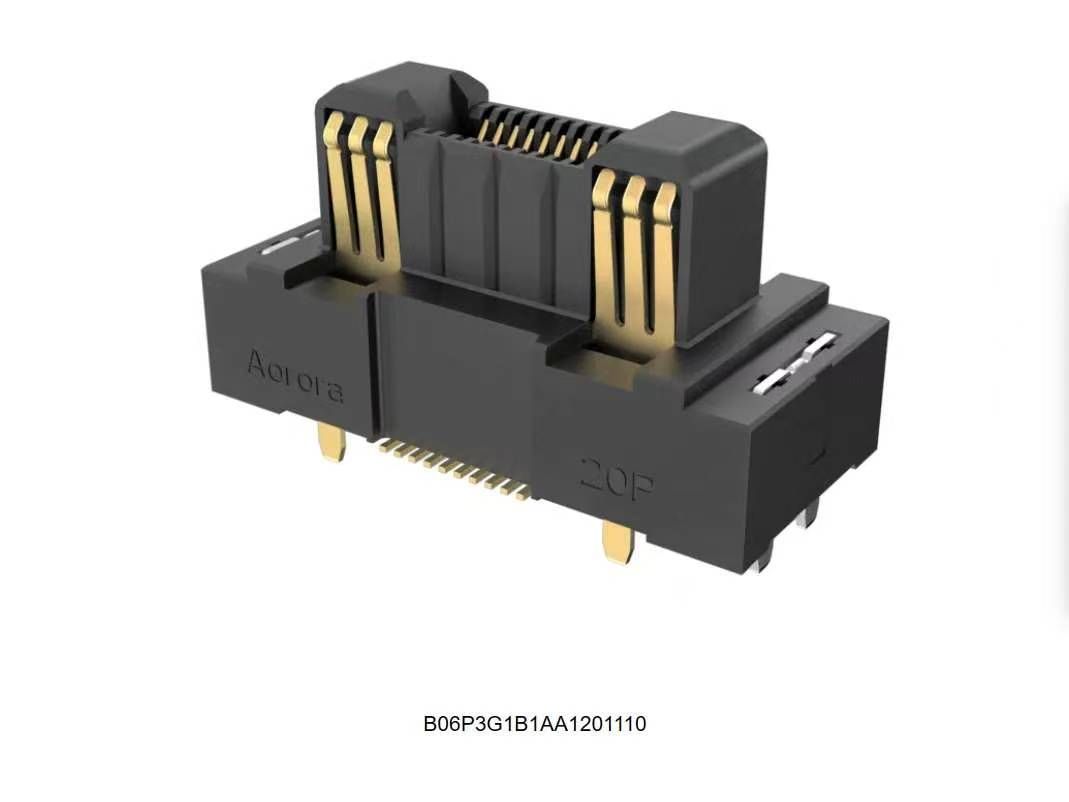

Board to board Connector, Pitch 0.50mm, Housing Height 9.13mm, Vertical orientation, Plug, 20 Positions, With Mylar

颜色 - 塑胶壳：Black

浮动容差：±0.80mm for X, Y Direction; ±0.60mm for Z Direction

性别：Header

塑胶壳高度：9.13mm (0.359in)

端子材料：Copper Alloy

塑胶壳材料：LCP

pin数：20

定向：Vertical

包装：Tape/Reel

Pitch：0.50mm (0.020in)

产品系列：B06P

额定电压：50V AC/DC
