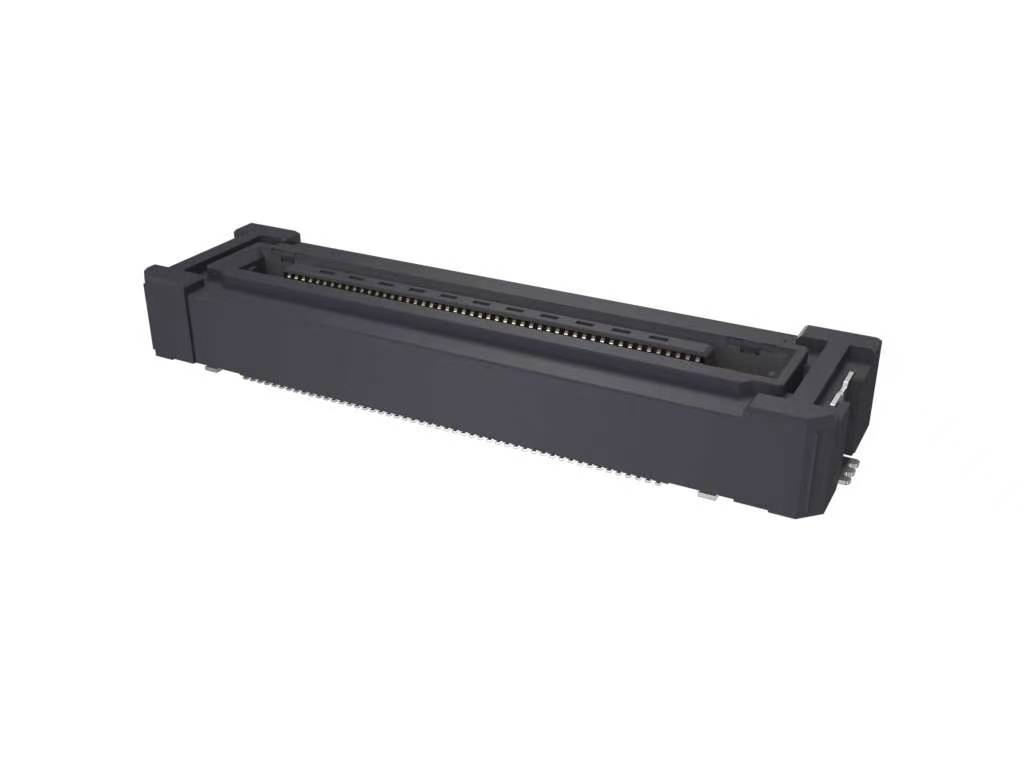

B3291B7L1112A0E100连接器

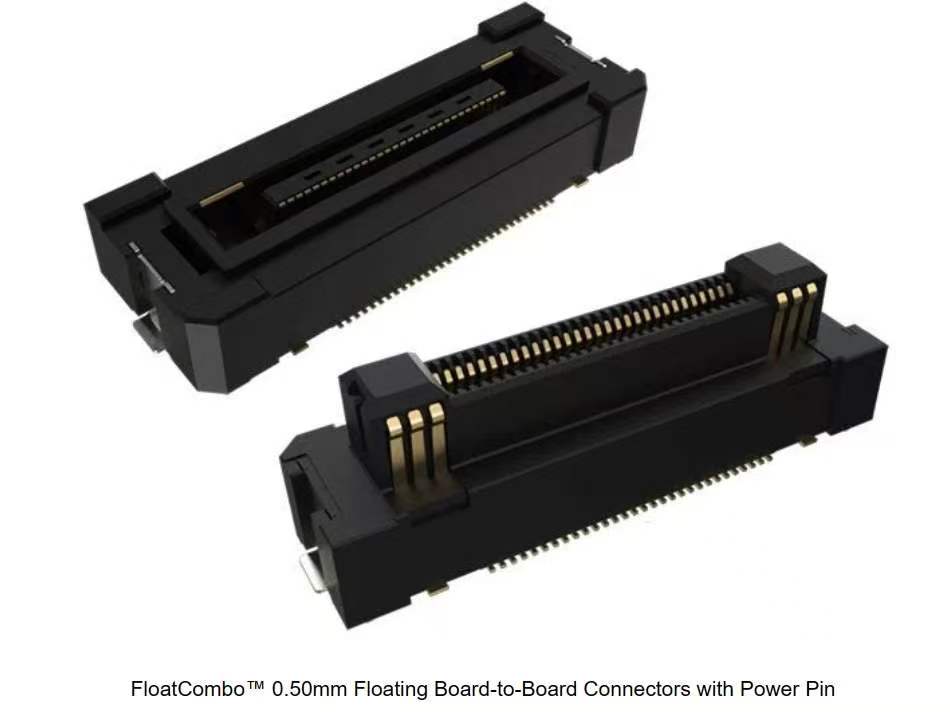

Board to board Connector, Pitch 0.50mm, Housing Height 5.0mm, Vertical orientation, Socket, 100 Positions, With Mylar

产品详情
颜色 - 塑胶壳：Black

Current Rating：Signal pin 0.5A/pin AC/DC;Power pin 5A/pin AC/DC

3D模型(STP)

No short or breakdown after AC 250V, 2mA, 1min.

Durability (Mating cycles)：100

浮动容差：±0.60mm for X, Y Direction; ±0.50mm for Z Direction

性别：Receptacle

Guide Feature：Yes

Hold Down：Yes

塑胶壳高度：5.00mm (0.197in)

塑胶壳材料：LCP

绝缘体材质：LCP

Number of Contacts：100

Number of Rows：2

工作温度范围：-55°C to +125°C

定向：Vertical

包装：Tape/Reel

Pitch：0.50mm (0.020in)

Flammability Rating：UL 94 V-0

Plating Contact area：4μin Min.Gold plating at contact area; 2μin Min. Gold plating at solder area; 40 to 120μin Nickel underplating over all

产品系列：B329

Retention Feature：No

Solder process：Compatible with Reflow Soldering Processes

Termination Style：Surface Mount

Vacuum Pick-up Cap：Yes

额定电压：50V AC/DC
