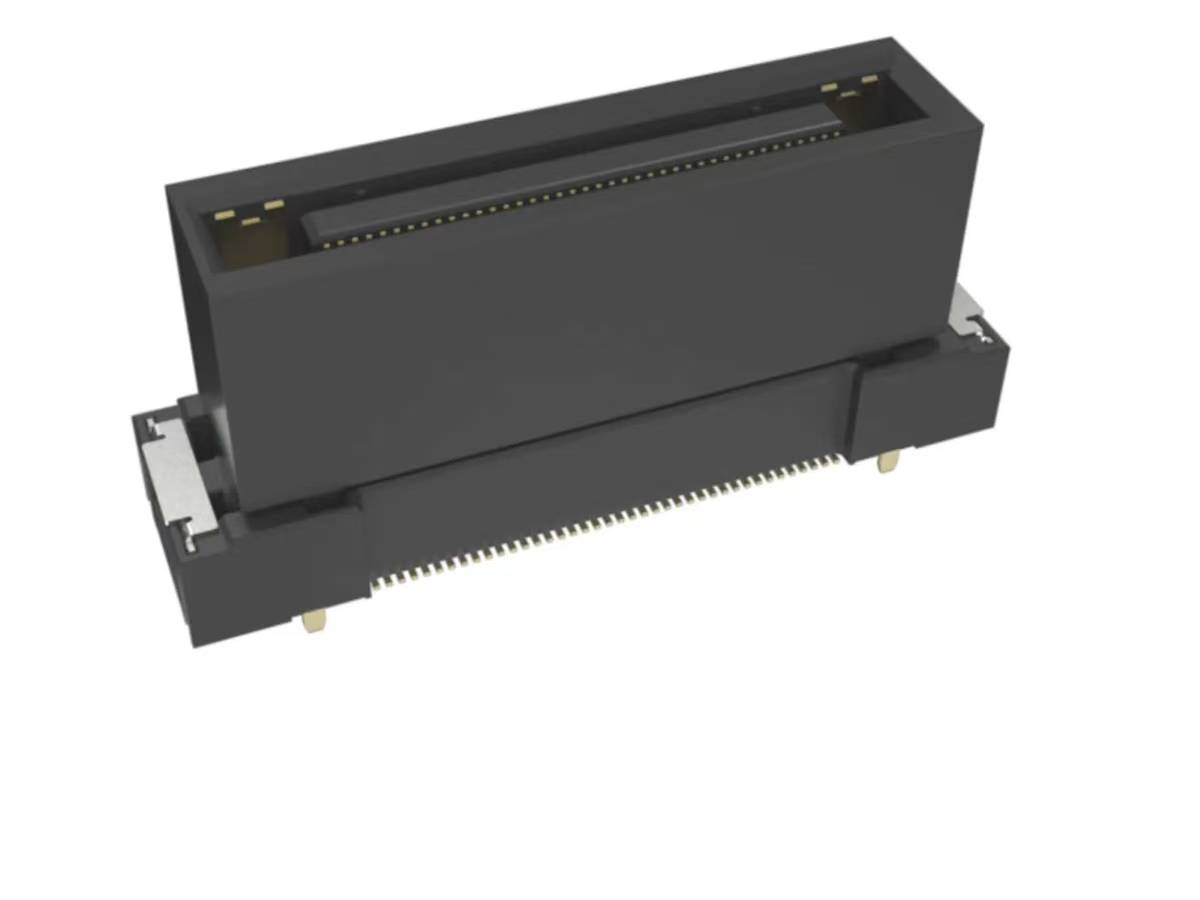

B04R3J1B1AA1601110连接器

Board to board Connector, Pitch 0.50mm, Housing height 14.9mm, Vertical orientation, Socket, 60 Positions, With Mylar

产品详情
颜色 - 塑胶壳：Black
Current Rating：5A(P)/0.5A(S)
3D模型(STP)：No short or breakdown after AC 250V, 1mA, 1min
Durability (Mating cycles)：100
浮动容差：±0.80mm for X, Y Direction; ±0.60mm for Z Direction
性别：Receptacle
Guide Feature：Yes
Hold Down：Yes
塑胶壳高度：14.90mm (0.587in)
塑胶壳材料：LCP
绝缘体材质：LCP
Number of Contacts：60
Number of Rows：2
工作温度范围：-55°C to +125°C
定向：Vertical
包装：Tape and Reel
Pitch：0.50mm (0.020in)
Flammability Rating：UL 94 V-0
Plating Contact area：4μin min Gold plating
产品系列：FloatCombo 0.50mm Floating Board-to-Board Connectors with Power Pin
Retention Feature：No
Solder process：Reflow
Tail Plating：Gold
Termination Style：Surface Mount
Vacuum Pick-up Cap：Yes
额定电压：50V AC/DC
