B04R3J1B1AA1201110连接器

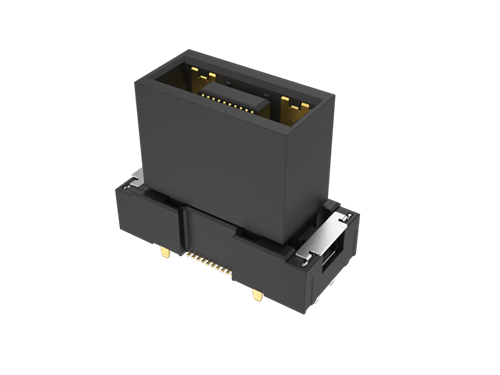

Board to board Connector, Pitch 0.50mm, Housing Height 14.9mm, Vertical orientation, Socket, 20 Positions, With Mylar

产品详情
颜色 - 塑胶壳：Black

Current Rating：ignal pin 0.5A/pin AC/DC;Power pin 5A/pin AC/DC

3D模型(STP)：No short or breakdown after AC 250V, 1mA, 1min.

Durability (Mating cycles)：100

浮动容差：±0.80mm for X, Y Direction; ±0.60mm for Z Direction

性别：Receptacle

Guide Feature:Yes

Hold Down:Yes

塑胶壳高度:14.90mm (0.586in)

端子材料:Copper Alloy

塑胶壳材料:LCP

Number of Contacts：20

Number of Rows：2

工作温度范围：-55°C to +125°C

定向：Vertical

包装：Tape/Reel

Pitch：0.50mm (0.0196in)

Flammability Rating：UL 94 V-0

Plating Contact area：4μin Min.Gold plating at contact area; 2μin Min. Gold plating at solder area; 40 to 120μin Nickel underplating over all

产品系列：B04R

Retention Feature：No

Solder process：Compatible with Reflow Soldering Processes

Tail Plating：Gold

Termination Style：Surface Mount

Vacuum Pick-up Cap：Yes

额定电压：50V AC/DC
